Harlequin Actitherm sprung floor

Actitherm-Vinyl-Sprung-Floor-Illustrations-for-web
Actitherm-Hardwood-Sprung-Floor-Illustrations-for-web

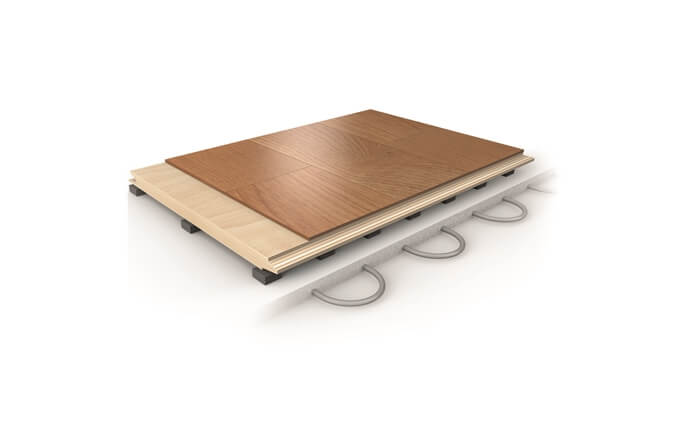

large_Harlequin_Actitherm_with_maple
large_Harlequin_Actitherm_with_beech
The-nash
Actitherm-Vinyl-Sprung-Floor-Illustrations-for-web
Actitherm-Hardwood-Sprung-Floor-Illustrations-for-web
large_Harlequin_Actitherm_with_maple
large_Harlequin_Actitherm_with_beech
The-nash

Harlequin Actitherm is a sprung floor system specifically designed to be be installed over underfloor heating.

The panels are comprised of structural plywood topped with flooring grade plywood and are laid in a brickwork configuration to ensure consistency across the floor area.

Shock absorption and energy return are provided by dual density elastomer blocks attached to the underside of each panel.

  • Harlequin Actitherm can be finished with a choice of Harlequin vinyl, solid hardwood or engineered board.
  • Minimum floor thickness (before inclusion of chosen finish) – 43mm
  • Guaranteed for 25 years (T&Cs apply)

PLEASE NOTE: Underfloor heating should not be allowed to exceed 27°C if finished with a Harlequin vinyl floor surface or 30°C if finished with a solid hardwood or engineered board surface.

Information for Architects
  • Permanent
  • Minimum floor thickness (before inclusion of chosen finish) – 43mm
  • Minimum floor weight (before inclusion of chosen finish) – 18.95kg/m²
  • Testing standards –  EN 14904-2006
  • Maximum point load (BS EN 1195) – 789kg (7.74kN)
  • Can be installed over underfloor heating
  • Guaranteed for 25 years (T&Cs apply)

If a Harlequin vinyl performance floor is chosen, a moisture resistant suspension board will be included underneath, along with a colour matched composite edging profile, which will be installed around the finished edges. If solid hardwood or engineered board is chosen, the skirting will be ‘optional’.

* The 6mm layer is replaced with the chosen solid hardwood or engineered board if this option is chosen.

Harlequin Actitherm can be used in conjunction with the following surface finishes:

Specifications
+ -
  • Permanent
  • Minimum floor thickness (before inclusion of chosen finish) – 43mm
  • Minimum floor weight (before inclusion of chosen finish) – 18.95kg/m²
  • Testing standards –  EN 14904-2006
  • Maximum point load (BS EN 1195) – 789kg (7.74kN)
  • Can be installed over underfloor heating
  • Guaranteed for 25 years (T&Cs apply)

If a Harlequin vinyl performance floor is chosen, a moisture resistant suspension board will be included underneath, along with a colour matched composite edging profile, which will be installed around the finished edges. If solid hardwood or engineered board is chosen, the skirting will be ‘optional’.

* The 6mm layer is replaced with the chosen solid hardwood or engineered board if this option is chosen.

Related Products
+ -

Harlequin Actitherm can be used in conjunction with the following surface finishes:
